New and original LS035Y8DX02A SHARP CG-Silicon ,3.5 inch, 480×800 for 60 Hz
LS035Y8DX02A Basic Information
| Panel Model | LS035Y8DX02A |
| Panel Brand | SHARP |
| Descrition | CG-Silicon ,3.5 inch, 480×800 |
| Panel Type | CG-Silicon |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
LS035Y8DX02A Mechanical Features
| Dot Resolution | 480(RGB)×800 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 268 PPI |
| Aspect Ratio | 3:5 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0315×0.0945 mm (H×V) |
| Pixel Pitch | 0.0945×0.0945 mm (H×V) |
| Weight | 16.6g (Typ.) |
| Active Area | 45.36×75.6 mm (H×V) |
| Outline Dimension | 51.16×86.45 mm (H×V) |
| Outline Depth | 2.0 (Typ.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
LS035Y8DX02A Optical Features
| Display Mode | ASV, Normally Black, Transflective |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 10:1 (Typ.) (Reflective) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 11/24 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.290; Wy:0.310 |
| White Variation | 1.25 (Typ.)(9 points) |
| Reflectance Ratio | 1.5% (Typ.) |
| Sunlight Readable | Y |
The reasons you choose us
1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h
ard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
LS035Y8DX02A Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Driver IC | Built-in R63302 |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK460D3HC09 | SHARP | 46" | 1920×1080 |
| LS0DDPKP007 | SHARP | 2.5" | 320×240 |
| LK315T3HA68 | SHARP | 31.5" | 1366×768 |
| LK315D3HA19 | SHARP | 31.5" | 1920×1080 |
| LK315T3LW50T | SHARP | 31.5" | 1366×768 |
| LK400D3HC34J | SHARP | 40" | 1920×1080 |
| LK400D3HC34K | SHARP | 40" | 1920×1080 |
| LK315T3HA49S | SHARP | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information

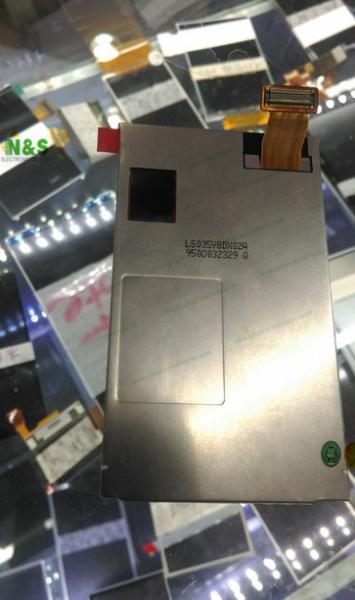

LS035Y8DX02A pictures
