FHD 4.0'' Sharp LCD Panel Parallel RGB For Automobile LS040V7DD01R

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

FHD 4.0'' Sharp LCD Panel Parallel RGB For Automobile LS040V7DD01R

Brand Name : SHARP

Model Number : LS040V7DD01R

Certification : ISO9001

Place of Origin : Japan

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Model : LS040V7DD01R 2 Compatible model

Display Mode : TN, Normally White, Transflective

Resolution : 480(RGB)×640 , VGA

Panel Type : CG-Silicon

Active Area : 60.48×80.64 mm

Contact Now

Sharp LCD Panel 4.0 inch LCD LS040V7DD01R Hard coating 480(RGB)×640 , VGA Panel

Quick Details:

<

1. Panel Size : 4.0 inch
2. Active Area : 60.48×80.64 mm
3. Outline : 69.3×96 mm
4. Surface : Hard coating (3H)
5. Brightness : 70 cd/m² (Typ.)
6. Contrast Ratio : 100:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective)
7. Display Colors : 262K (6-bit)
8. Response Time : 30/50 (Typ.)(Tr/Td)
9. Viewing Angle : 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D)
10. Input Voltage : 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS)

Our Product Features and Advantages:

<

Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.

We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.

<<

Display Mode : TN, Normally White, Transflective
Brightness : 70 cd/m² (Typ.)
Contrast Ratio : 100 : 1 (Typ.) (Transmissive)
Contrast Ratio : 5:1 (Typ.) (Reflective)
Display Color : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D)
Viewing Direction : 6 o'clock
Reflectance Ratio : 4/6% (Min.Typ.)
Sunlight Readable : Sunlight Readable

Technical parameters for SHARP LS040V7DD01R:

Signal Category : TTL
Signal Class : Parallel RGB (1 ch, 6-bit)
Input Voltage for Panel : 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS)
Input Current for Panel : 5.5/2.3/0.7/-0.6/-0.2mA (Typ.)(ISHA/ISHD/IVDD/IVSSD/IGVSS)
Voltage for Display Signals : GND≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD
Interface Type : FPC
Signal Interface : Brand

SHARP LS040V7DD01R Packing Form

Amount per Box : 50 pcs
Box Size : 587×343×79 mm (L×W×H)
Box Gross Weight : 3.85 Kgs

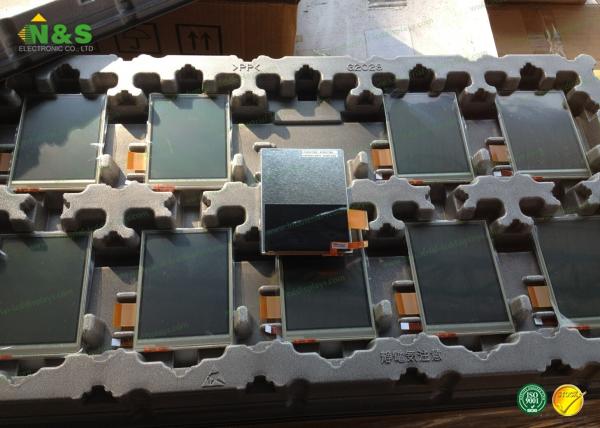

Details Picture for SHARP LS040V7DD01R :

FHD 4.0'' Sharp LCD Panel Parallel RGB For Automobile LS040V7DD01R
